Choosing the right PoE security camera system for your home is an important decision that requires careful consideration of your specific security needs. With the right approach, you can create a comprehensive surveillance system that protects your property and gives you peace of mind.
Assess Your Security Needs
Before diving into camera specifications, take time to evaluate what you need to protect. Walk around your property and identify vulnerable entry points such as front doors, back doors, ground-floor windows, and garage areas. Consider the layout of your home and the size of the area you want to monitor. A small apartment will have very different requirements than a large suburban home with extensive grounds.
Think about when you need surveillance most. Are you primarily concerned about daytime activity when you are at work, or do you need reliable night vision for 24/7 monitoring? Understanding these requirements will help you choose cameras with the right features.
Understand Different Camera Types
PoE security cameras come in several styles, each suited to different applications. Dome cameras feature a compact, vandal-resistant design that works well for indoor and outdoor installations where you want discreet positioning. Their housing makes it difficult for intruders to tell which direction the camera is pointing.
Bullet cameras offer a more visible deterrent with their prominent cylindrical shape. They are easier to install and adjust, making them ideal for outdoor perimeter monitoring. The weatherproof housing protects the components from rain, dust, and extreme temperatures.
Turret cameras combine the best features of both designs with a compact form factor and flexible positioning. They provide excellent night vision capabilities and are less likely to attract spider webs compared to dome cameras.
PTZ cameras give you remote control over pan, tilt, and zoom functions. While more expensive, they allow you to cover large areas with a single camera and track moving objects automatically.
Key Features to Consider
Resolution determines the clarity of your footage. Modern PoE cameras range from 1080p to 4K resolution. Higher resolution captures more detail, allowing you to identify faces and license plates from greater distances. However, higher resolution also requires more storage space and bandwidth.
Night vision capabilities vary significantly between models. Look for cameras with infrared LEDs that provide clear footage in complete darkness. The distance specifications tell you how far the camera can see at night, typically ranging from 30 to 100 feet.
The field of view determines how much area a single camera can cover. Wide-angle lenses capture more area but with less detail at distance. Narrow lenses focus on specific areas with greater clarity. Some cameras offer varifocal lenses that let you adjust the field of view during installation.
Weather resistance is crucial for outdoor installations. Look for IP66 or IP67 ratings that indicate protection against dust and water. Operating temperature ranges ensure your cameras function reliably in your local climate.

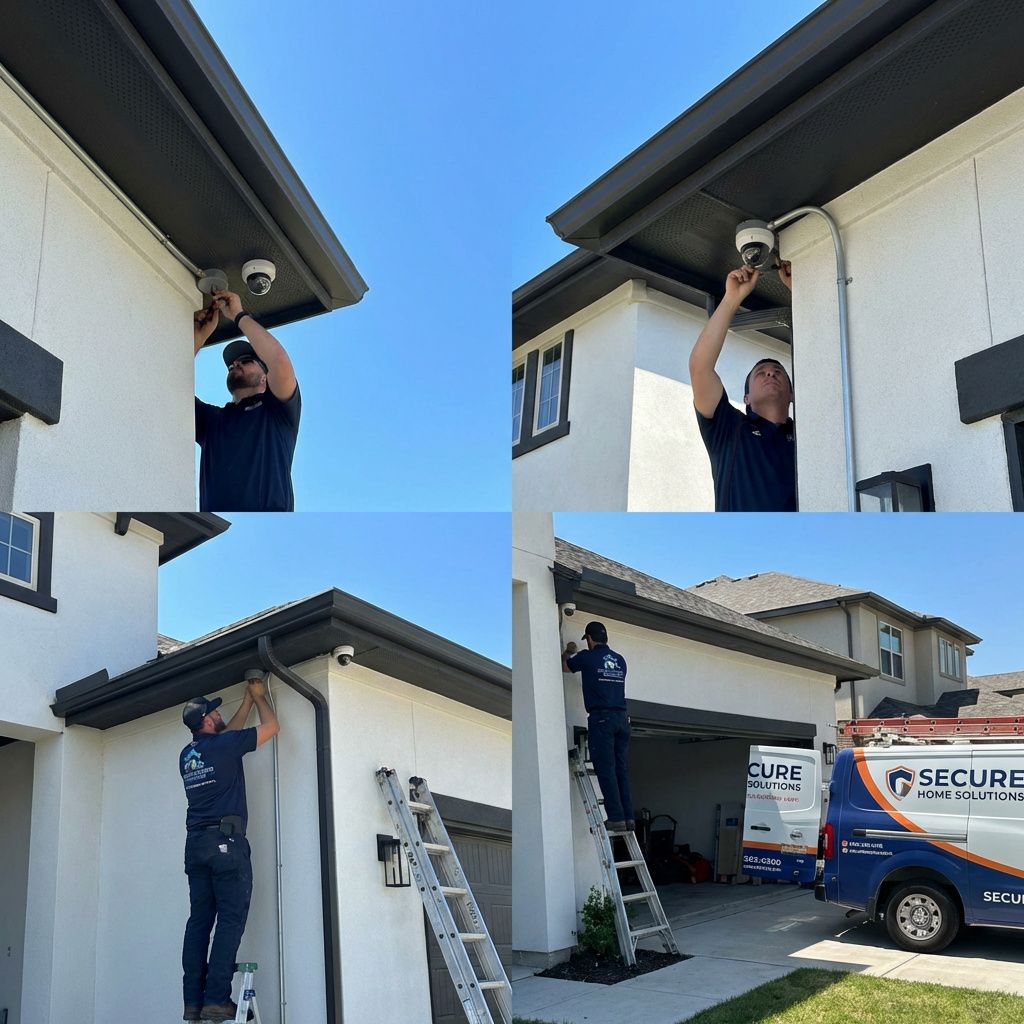

Plan Your Installation
Proper planning ensures your PoE security camera system performs optimally. Map out camera positions to eliminate blind spots while minimizing the number of cameras needed. Position cameras to cover entry points, driveways, walkways, and valuable outdoor assets.
Consider the power and network requirements. PoE cameras receive power through the ethernet cable, simplifying installation. However, you will need a PoE switch or injector to provide power, and you must calculate the total power budget to ensure adequate supply for all cameras.
Cable runs should be planned carefully. Ethernet cables can run up to 328 feet without signal degradation. Measure distances from your network equipment to each camera location and account for proper cable management.
Set Your Budget
Quality PoE security camera systems represent a significant investment, but they provide lasting value. Entry-level systems start around $300 for a basic four-camera setup, while professional-grade installations can exceed $2000. Factor in costs for storage, whether using an NVR or hard drives for a custom setup.
Remember that the cheapest option rarely provides the best value. Investing in reliable equipment from reputable manufacturers saves money on replacements and ensures your security system works when you need it most.
Final Thoughts
Choosing the right PoE security camera system requires balancing your security needs with your budget constraints. Take time to research different options, read reviews from verified purchasers, and consider consulting with a professional installer for complex setups. With proper planning and quality equipment, your PoE camera system will provide reliable security monitoring for years to come.\n\nFor more information about networking equipment, check out our guide on understanding PoE switch power budgets.
For more information about networking equipment, check out our guide on understanding PoE switch power budgets to ensure your network can support your camera system.
